Virt-manager

In its current state virt-manager is not capable of fully managing OpenVZ linux containers - so it’s mainly a alternative GUI tool for doing KVM VM management with OpenNode OS - and not supporting all features that OpenNode OS may have. However we try to make virt-manager user experience as smooth as we can by pre-configuring libvirt for OpenNode related policies as much as possible.

More info about virt-manager can be found here: http://virt-manager.org/

Launching virt-manager

In order to easily run virt-manager GUI app we have included it to OpenNode OS. As OpenNode OS runs headless (without full desktop environment) the most simple way to run virt-manager is to enable X forwarding over ssh connection and host the application on your remote desktop. In order to do it you will need to setup X-server on your desktop PC.

You can follow these setup recipes for installing Xserver for your desktop:

Connecting from Linux and MacOSX

# execute on your desktop PC terminal console
ssh -X root@your.opennode.host
# on MacOSX desktop the X11 app will be automatically launched
# after successful login to OpenNode host start virt-manager from it's ssh console
virt-manager

Setup virt-manager for OpenNode usage

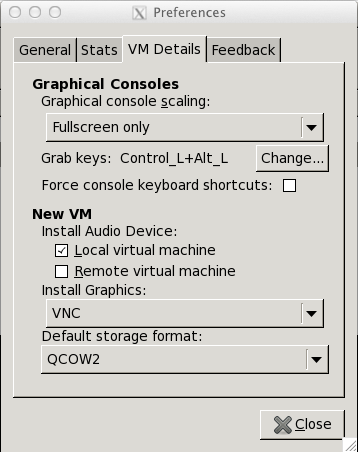

Setting QCow2 as default storage format

  • Launch virt-manager
  • Go to Edit->Preferences
  • Choose “VM Details” tab
  • Change “Default storage format” to QCow2

Enable virtio for disk IO

  • For best possible disk IO perfomance you should use virtio disk bus type
  • If installing Windows OS don’t forget to provide Windows Virtio driver CD ISO image at install time - please see virt-install examples for CLI operation
  • Windows Virtio driver CD ISO can be downloaded from here: http://alt.fedoraproject.org/pub/alt/virtio-win/latest/images/bin/

Fixing libvirt default storage pool path for virt-manager

In OpenNode OS older than build 6.0.11 libvirt default storage path still points to /var/lib/libvirt/images - but OpenNode OS default one is set to /storage/local/images (for KVM disk images). Following this recipe it can be easily fixed.

# Launch opennode TUI and go to KVM console (virsh)
# Execute the following commands on virsh shell
pool-destroy default
pool-undefine default
pool-define-as --name default --type dir --target /storage/local/images
pool-autostart default
pool-build default
pool-start default
pool-destroy local
pool-undefine local
pool-define-as --name local --type dir --target /storage/local/images
pool-autostart local
pool-build local
pool-start local
pool-define-as --name local-iso --type dir --target /storage/local/iso
pool-autostart local-iso
pool-build local-iso
pool-start local-iso
quit
